Dimensions (L × W × H): 3 × 2 × 2.3 m (approximately 9.8 × 6.6 × 7.5 ft); highest interior point 1.88 m. Reference weight: approximately 800 kg (standard configuration). Factory-delivery (EXW) reference price: US$4,099–4,299 for the standard stainless-steel round configuration. Operating equipment (including ice-cream machines), stickers, cabinet doors, wooden-crate packing, transport and destination costs are separate; the written quotation confirms all details.

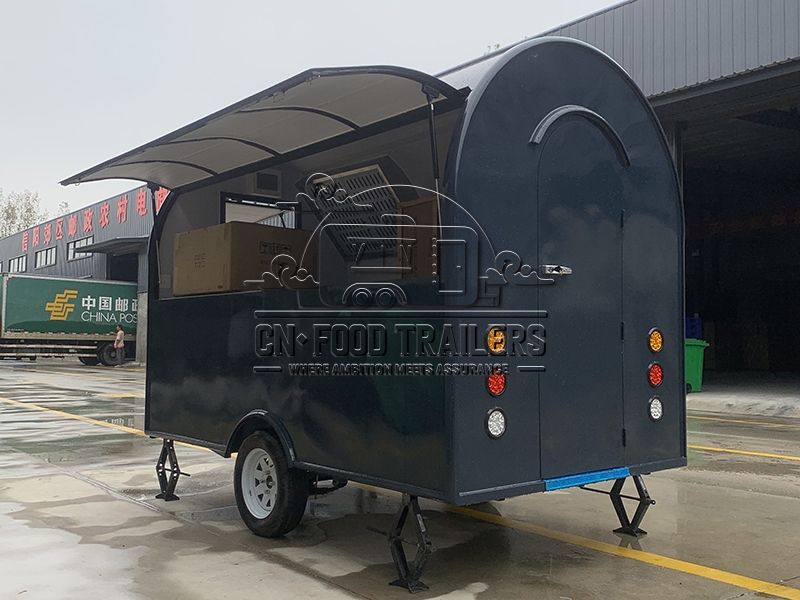

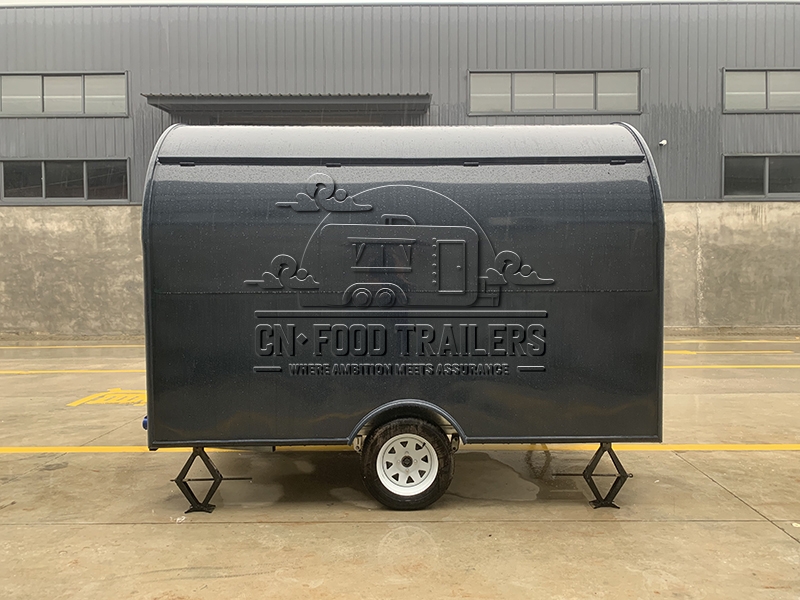

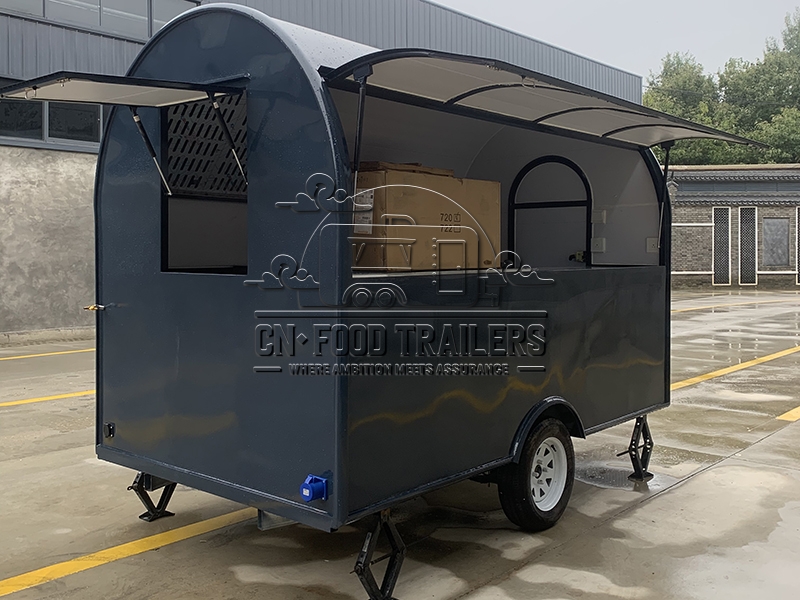

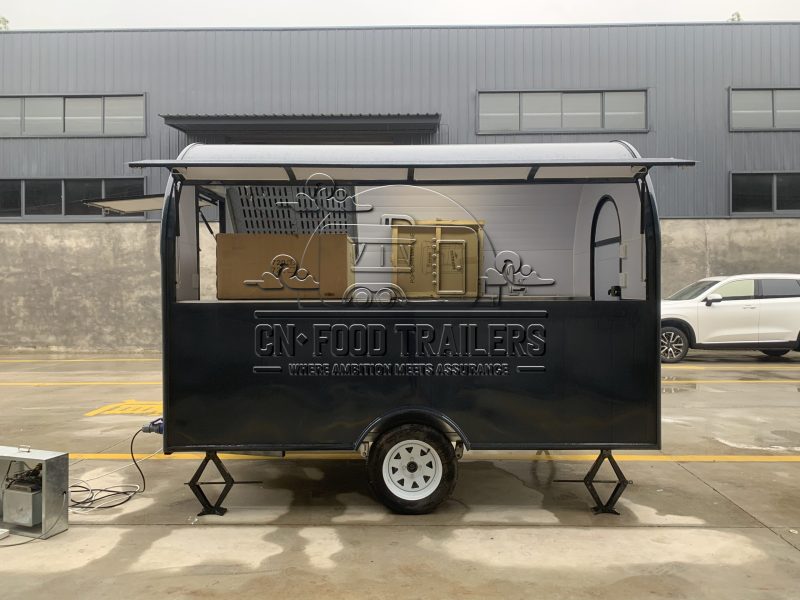

10FT Small Round Food Trailer for Ice Cream
Description
Dimensions and standard configuration
- Dimensions (L × W × H): 3 × 2 × 2.3 m (approximately 9.8 × 6.6 × 7.5 ft). The highest interior point is 1.88 m; confirm the interior height and final dimensions for your configuration before ordering.

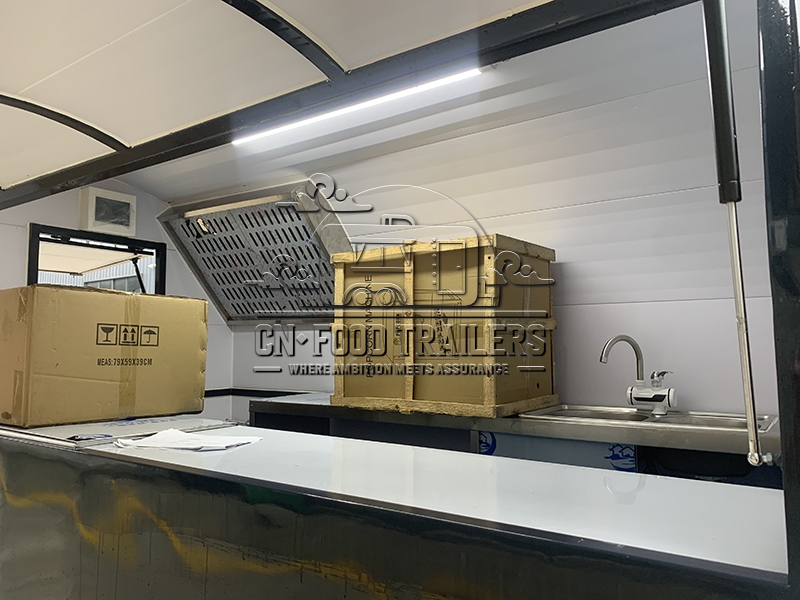

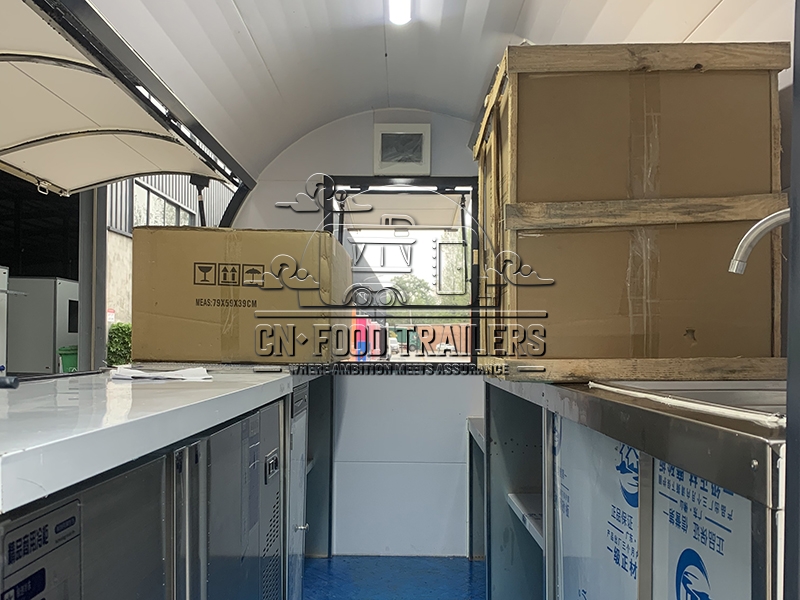

- Body: stainless steel round food trailer with stainless steel worktops; cabinet doors are not included. Interior trim is 201 stainless steel and the floor is aluminium tread plate. Counter width is 600 mm with a counter height of 850 mm on one side.
- Weight: approximately 800 kg per the internal specification sheet for the standard configuration. Confirm the towing vehicle and shipping arrangement against this figure; the exact weight of your configuration is confirmed in the quotation.
- Other standard fittings: cash drawer, scissor support jack, trailer coupling system and tires.
- Single-axle configuration per the company axle guideline for 3 m trailers; confirm the final running-gear specification in the quotation.
Water system
The standard water system includes an electric hot-water faucet and automatic water supply and drainage. Gas piping and extraction are configured according to customer requirements; confirm your menu and equipment needs in the quotation.
- Double-sink configuration: 25 L fresh-water tank and 25 L waste-water tank; standard for destinations outside the United States.
- U.S. standard configuration: a 3+1 sink arrangement with a 50 L fresh-water tank and a 75 L waste-water tank.
Confirm the sink arrangement and local operating requirements for your destination before ordering.
Electrical system
Standard electrical fittings include interior lighting, side marker lights, clearance lights, tail lights, an external power connection, power outlets and a distribution box. Supply voltage, total power and plug type are customized to the destination market. Confirm frequency, plug type, circuit design and the actual equipment load in the final quotation; these figures do not describe the consumption of every possible appliance combination.
Standard optional and excluded items
| Standard configuration | Optional at extra cost | Excluded or subject to separate agreement |
|---|---|---|
| Water supply and drainage, hot-water faucet and the sink/tank configuration described above | Higher-flow pumps and additional water systems | Destination-specific changes beyond the agreed standard specification |
| Interior and exterior lighting, marker lights, external power connection, outlets and distribution box | Wiring upgrades, extra outlets, dual circuits and upgraded power inlets | Unspecified appliances and any unconfirmed certification claims |
| Stainless steel worktops without cabinet doors, cash drawer and scissor support jack | Cabinet doors, overhead cabinets, interior upgrades and extra lighting | Ice-cream machines, coffee equipment, refrigeration and generators unless itemized in the quotation |
| Coupling system, support jack and tires; final axle specification to be confirmed | Axle upgrade, electric-brake torsion axle, wheel and tire upgrades | Any assumed load rating or axle configuration not confirmed for the ordered trailer |
| Agreed standard trailer configuration | Body widening or lengthening, paint, stickers, decals and graphics | Wooden-crate packing, transport, import duties, destination charges, customs clearance and insurance |
Upgrade availability, compatibility and pricing are confirmed in the final written quotation. Operating equipment such as ice-cream machines is customized to the menu and quoted separately.
Running gear and axle to confirm
The company axle guideline places 3 m trailers in the single-axle group, with mechanical braking as standard. Optional upgrades include a branded single-axle 1.25 t upgrade and an electric-brake torsion axle; these are quoted separately. Tires are 185/15 six-hole (approximately 875 kg per tire); confirm the final axle, braking and load specification in the quotation. For European COC registration and for the United Kingdom, an axle upgrade is normally recommended; confirm the requirement for your destination.
What the reference price includes
Standard-configuration reference price: US$4,099–4,299. This is a factory-delivery (EXW) reference range for the 3 × 2 m stainless steel round trailer in the agreed standard configuration. The price excludes stickers and decals, transportation, operating equipment and cabinet doors. Wooden-crate packing, transport, import duties and other destination costs are separate; the tax treatment and any FOB arrangement must be confirmed in the quotation. Request a written quotation for your destination and final configuration.
Operating equipment such as ice-cream machines, coffee machines and refrigeration is not included in this reference price. Discuss your menu with a business manager to receive a separate equipment quotation.
Delivery and warranty
Warranty: one year. The warranty starts when the trailer leaves the factory. Quality claims require photos or video for assessment; improper operation and transport damage are excluded. The estimated production lead time is approximately 30 working days. Body widening, lengthening and custom stickers or decals extend the lead time. Confirm the production schedule and its start date in your quotation.
Wooden-crate packing is quoted separately according to trailer length and destination port. Factory visits, third-party inspections and video inspections can be arranged; agree the inspection scope and timing before shipment.
Documents and compliance
The listing references CE, DOT, VIN, UL and NSF compliance. Available documents include a CE certificate for the vending-cart series (valid until 16 July 2029) and CE report TST20240700769. Confirm the document set, its scope (complete vehicle or components) and its applicability to your destination country before ordering; vehicle registration, power connection standards and food-business permits are arranged locally by the buyer.
Frequently asked questions
What is the confirmed trailer size?
The exterior dimensions are 3 × 2 × 2.3 m (approximately 9.8 × 6.6 × 7.5 ft). The highest interior point is 1.88 m; the interior height for your configuration is confirmed in the quotation and drawings.
Does the US$4,099–4,299 price include shipping and taxes?
No. It is a factory-delivery (EXW) reference range for the standard stainless steel round configuration. Stickers and decals, transportation, operating equipment and cabinet doors are excluded. Wooden-crate packing, transport, import duties and destination charges are separate.
Which water tanks are included?
The double-sink configuration includes a 25 L fresh-water tank and a 25 L waste-water tank. The U.S. standard 3+1 configuration includes a 50 L fresh-water tank and a 75 L waste-water tank. All configurations include an electric hot-water faucet and automatic water supply and drainage.
Is the ice-cream machine included?
No. Operating equipment, including ice-cream machines, is customized to your menu and quoted separately. The standard configuration covers the water system, electrical system, stainless steel worktops, cash drawer, support jack, coupling system and tires.
What is the trailer weight?
Approximately 800 kg per the internal specification sheet for the standard configuration. Confirm the towing and shipping arrangement against this figure; the exact weight of your configuration is confirmed in the quotation.
What axle and braking configuration does it use?
Per the company axle guideline, 3 m trailers use a single axle with mechanical braking as standard. Optional upgrades include a branded single-axle 1.25 t upgrade and an electric-brake torsion axle, quoted separately. The final specification is confirmed in the quotation.
What is the warranty period?
One year from the date the trailer leaves the factory, covering the vehicle structure and main kitchen equipment. Improper operation and transport damage are excluded.
Which documents are available for my destination country?
Available documents include a CE certificate for the vending-cart series (valid until 16 July 2029) and CE report TST20240700769. Confirm the applicable document set and local registration requirements for your destination before ordering.
What information is needed for a quotation?
Provide your destination port, menu and equipment requirements, and any customization such as size, color or stickers. The quotation confirms the configuration, price, lead time and shipping arrangement.
What is the production lead time?
Approximately 30 working days for the standard configuration. Body widening, lengthening and custom stickers or decals extend the lead time; the exact schedule is confirmed in the quotation.
Request a configuration and delivery quotation
Send us your destination port, menu and equipment list, and preferred size and color. We will prepare a written configuration and delivery quotation covering the standard scope, optional equipment, wooden-crate packing and shipping arrangement for your market.
